Introduction
The Home+ era is upon us, with a surge in remote work and study making home broadband an indispensable necessity. Shifting from a mere entertainment hub to a multifunctional center, home broadband takes center stage. Sercomm, a leading broadband technologies integrator, stands as a global leader in broadband gateways. Offering a comprehensive FTTx solution range, including SFP, SFU, and HGU products, Sercomm supports service operators in creating fully customized products aligned with their strategic goals.
At the forefront of Fiber-To-The-Home, Sercomm introduces the next-gen home gateway, delivering a symmetrical throughput of 10Gbps to fiber households. Leveraging the latest Wi-Fi 7 technology, this high capacity efficiently extends to diverse wireless devices within the home network.
At the forefront of Fiber-To-The-Home, Sercomm introduces the next-gen home gateway, delivering a symmetrical throughput of 10Gbps to fiber households. Leveraging the latest Wi-Fi 7 technology, this high capacity efficiently extends to diverse wireless devices within the home network.
Key Features
PON
・Different flavors, G/E PON, DPoE, XGPON, XGSPON, Combo PON
・ITU G.984, G988 series standards
・32 T-CONTs, 256 GEM Port-Ids
・Forward Error Correction (FEC)s
・Management and firmware upgrades remotely through OMCI
・ITU G.984, G988 series standards
・32 T-CONTs, 256 GEM Port-Ids
・Forward Error Correction (FEC)s
・Management and firmware upgrades remotely through OMCI
Network
・IPv4 / IPv6 dual stack
・Supports PPPoE, DHCP and Static IP configuration
・Triple Play (VoIP, IPTV & HSI)
- VoIP → SIP & MGCP
- IPTV → IGMP & Multicast
・Support Parental Control
- IP & MAC Filtering w/ Scheduling
・Supports PPPoE, DHCP and Static IP configuration
・Triple Play (VoIP, IPTV & HSI)
- VoIP → SIP & MGCP
- IPTV → IGMP & Multicast
・Support Parental Control
- IP & MAC Filtering w/ Scheduling
Wi-Fi & Mesh
・Up to Wi-Fi7, support 320MHz, MLO, MRU
・EasyMesh R4
・Band steering, DFS, WPA3, Auto Channel Selection
・WMM, WPS, MAC Filter
・EasyMesh R4
・Band steering, DFS, WPA3, Auto Channel Selection
・WMM, WPS, MAC Filter
ACS Protocols
・TR-069: TR-098 & TR-181 data model
・TR-143 for Speed Test diagnostic
・TR-143 for Speed Test diagnostic
QoS
・QoS for IP,Ethernet,WIreless,PON
・Queuing & Scheduling
・Queuing & Scheduling
Security
・Supports Anti DoS
・Firewall
・Secure Boot
・Firewall
・Secure Boot
Product Category
Tri-band Wi-Fi 7 10G PON | Dual-Band Wi-Fi 7 G/ E PON | |
---|---|---|
Bandwidth | 10/ 10 Gbps | 2.5/ 1.25 Gbps |
Form Factor | Vertical | Vertical |
WAN | XGSPON | G/ E PON |
LAN | 2 x 10Gbps, 4 x 1Gbps | 1 x 2.5Gbps, 3 x 1Gbps |
Voice | 2 x FXS port | 2 x FXS port |
Wi-Fi |
2.4GHz 4x4 802.11be 5GHz 4x4 802.11be 6GHz 4x4 802.11be |
2.4GHz 4x4 802.11be 5GHz 4x4 802.11be |
Remote Management | OMCI, TR-069/ TR-369 | OMCI, TR-069/ TR-369 |
Product |
HGU
Tri-band Wi-Fi 7 10G PON
|
HGU
Dual-Band Wi-Fi 7 G/ E PON
|
XGSPON | G/ E PON | |
---|---|---|
Bandwidth | 10/ 10 Gbps | 2.5/ 1.25 Gbps |
Form Factor | Horizontal/ Wall mount | Horizontal/ Wall mount |
WAN | XGSPON, DPoE 10G EPON | G/ E PON |
LAN | 1 x 10Gbps, 1 x 1Gbps | 1 x 1Gbps |
Voice | 2 x FXS port | 1 x FXS port |
Wi-Fi | - | X |
Remote Management | OMCI, TR-069/ TR-369 | OMCI, TR-069 |
Product |
SFU
XGSPON
|
SFU
G/ E PON
|
G/ E PON stick | 10G Stick | |
---|---|---|
Bandwidth | 2.5/ 1.25 Gbps | 10/ 10 Gbps |
Form Factor | Stick | Stick |
WAN | GPON/ EPON | XGSPON, DPoE 10G EPON |
LAN | - | - |
Voice | - | - |
Wi-Fi | - | - |
Remote Management | OMCI | OMCI |
Product |

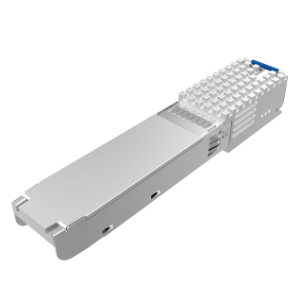

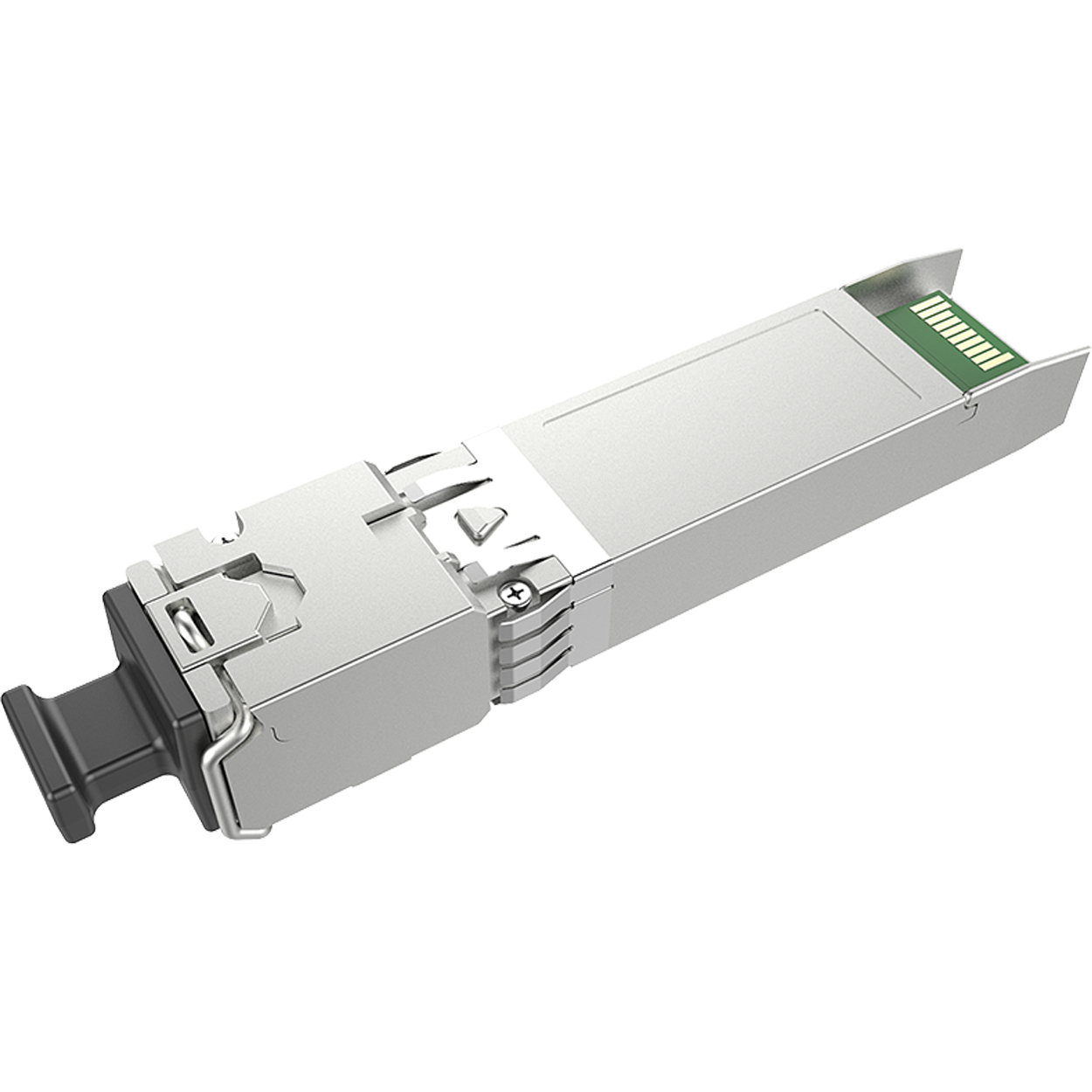

SFP
G/ E PON stick
|
SFP
10G Stick
|
